OTEC Defined
Ocean Thermal Energy Conversion (OTEC) is a game-changing technique that uses temperature variations in the ocean to create endless energy without using fossil fuels.
In terms of accessibility, dependability, price, and emissions, it has a competitive edge over alternative methods of energy generation.
History of OTEC
The idea of using the ocean’s thermal energy was first proposed in 1881 by French physicist Jacques Arsene d’Arsonval.
His concept called for a closed-cycle system, which most modern OTEC pilot plants have since adopted. A secondary working fluid (a refrigerant) such as ammonia is used in such a system.
During the 1970s and 1980s, the U.S., Japan, and several other nations began experimenting with OTEC systems to establish a sustainable renewable energy source.
American researchers put the first OTEC plant capable of generating reasonable amounts of electric power—roughly 15 kilowatts of net power—into operation in 1979. Mini-OTEC was a closed-cycle system placed on a U.S. seacraft several kilometers off the coast of Hawaii.
Japanese businesses tried another experimental closed-cycle OTEC plant in 1981–82. This plant, located on the Pacific island nation of Nauru, generated 35 kilowatts of net electricity.
Since then, researchers have worked on improving heat exchangers and devising techniques to reduce saltwater corrosion of system components.
In 1999 the Natural Energy Laboratory of Hawaii Authority (NELHA) was established as the first test site in the United States for OTEC research and development.
How It Works
OTEC relies on the ocean’s thermal gradient—the difference in temperature between the warm surface water and the colder deep water.
This temperature difference can be as high as 20°C (68°F) in tropical waters, but it is usually about 6-12°C (11-22°F).
The basic idea is to use the warm water to vaporize a working fluid, which is then run through a turbine to generate electricity. The vapor is then condensed into a liquid using cold water, and the cycle begins anew.

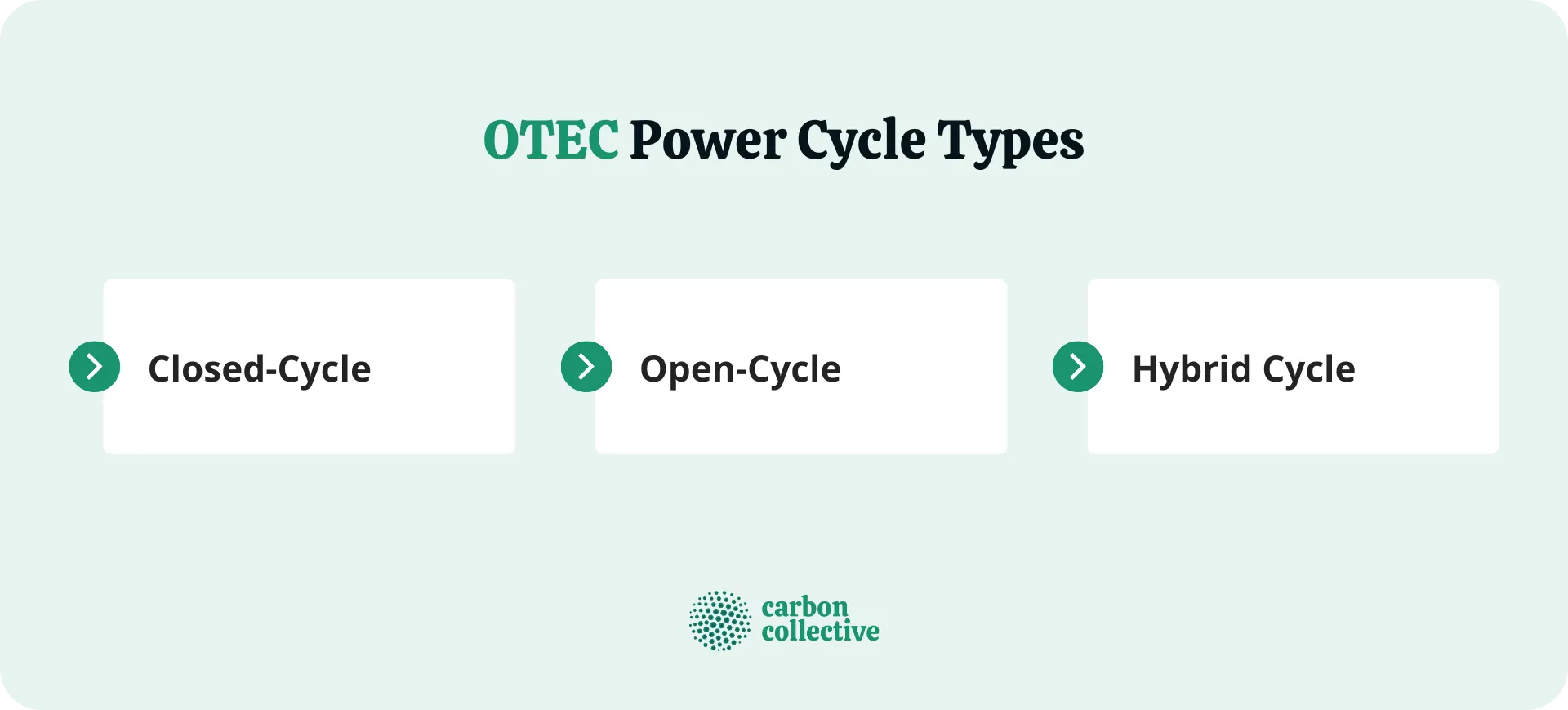

Power Cycle Types
There are three primary OTEC power cycles: closed-cycle, open-cycle, and hybrid.
Closed-Cycle
The working fluid (such as ammonia) is vaporized using warm water in a closed-cycle system. The resulting vapor runs through a turbine, which powers a generator to produce electricity. The vapor is then condensed into a liquid using cold water, and the cycle begins anew.
The main advantage of this type of system is that it can be used in various environments, including land-based, shelf-based, and floating OTEC plants.
Open-Cycle
Steam is generated directly from the warm surface water in an open-cycle system. The steam then runs through a turbine to power a generator and produce electricity. The steam is then cooled by contact with the cold water, condensing back into a liquid.
The main advantage of this type of system is that it is relatively simple and does not require a working fluid.
However, it can only be used in ocean environments with a significant temperature difference between the surface and deep water—such as in the tropics.
Hybrid Cycle
A hybrid system combines the best features of both the closed-cycle and open-cycle systems.
In a hybrid system, warm water vaporizes a working fluid (such as ammonia). The resulting vapor runs through a turbine to power a generator and produces electricity.
The steam is then condensed back into a liquid using cold water. Some condensed steam vaporizes the working fluid, and the rest generates additional electricity through a second turbine.
The main advantage of this type of system is that it is more efficient than either the closed-cycle or open-cycle systems.

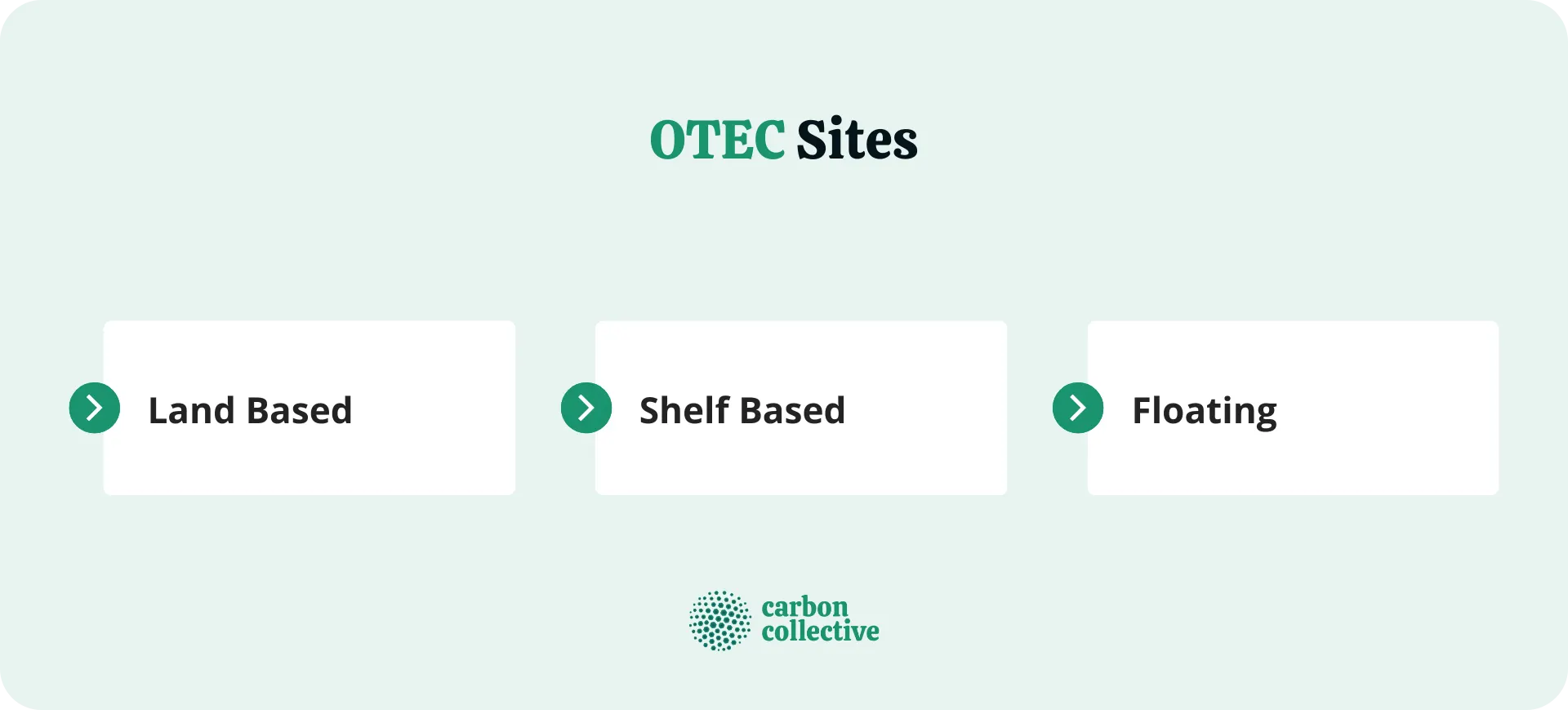

OTEC Sites
There are three main types of OTEC sites: land-based, shelf-based, and floating.
Land Based
Land-based OTEC plants are typically located near a deep water source in coastal areas.
Shelf Based
Shelf-based OTEC plants are typically located on the continental shelf—the shallow underwater platform that extends from the coastline to the continental slope.
Floating
Floating OTEC plants are typically located in open ocean environments, such as in the tropics.

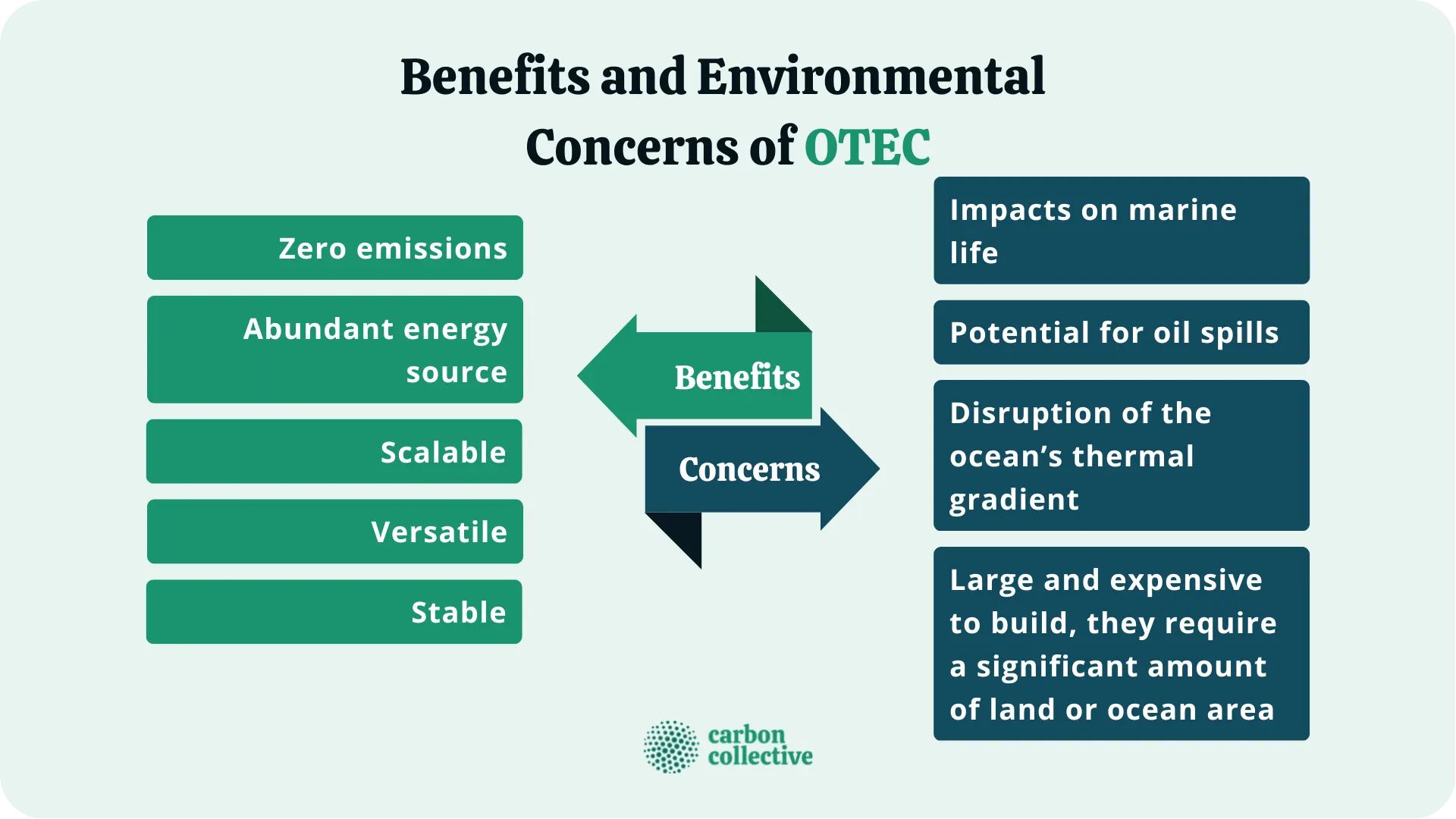

Benefits of OTEC
OTEC has several potential benefits, including:
- Zero emissions: OTEC plants do not produce greenhouse gases or other pollutants.
- Abundant energy source: The ocean is a vast and virtually limitless thermal energy source.
- Scalable: OTEC plants can be scaled to meet the needs of any size community, from a small island village to a large city.
- Versatile: OTEC plants can be used to produce a variety of products, including electricity, freshwater, and greenhouse gases.
- Stable: The ocean’s thermal gradient is relatively stable and predictable, making OTEC a reliable energy source.
Environmental Concerns
There are also several environmental concerns associated with OTEC, including:
- Impacts on marine life: The intake of warm water from the ocean can impact marine life, particularly in shallow waters.
- Potential for oil spills: OTEC plants that use oil as a working fluid could release oil into the environment in the event of a spill.
- Disruption of the ocean’s thermal gradient: The release of cold water from deep ocean depths can disrupt the ocean’s thermal gradient, potentially impacting global climate patterns.
- OTEC plants are also large and expensive, requiring a significant amount of land or ocean area.
Final Thoughts
OTEC is the process of using the ocean’s thermal energy to produce electricity.
OTEC plants can be either land-based, shelf-based, or floating, and they come in three main types: closed-cycle, open-cycle, and hybrid.
OTEC has several potential benefits, including zero emissions, and is a scalable, versatile, and stable energy source.
However, OTEC also has several environmental concerns, including the potential for oil spills and the ocean’s thermal gradient disruption.
FAQs
1. What is OTEC?
OTEC is the process of using the ocean’s thermal energy to produce electricity.
2. What are the three main types of OTEC plants?
The three main OTEC plants are closed-cycle, open-cycle, and hybrid.
3. What are the benefits of OTEC?
Some potential benefits of OTEC include zero emissions and a scalable, versatile, and stable energy source.
4. What are the environmental concerns associated with OTEC?
Some environmental concerns associated with OTEC include the potential for oil spills and the ocean’s thermal gradient disruption.
5. Is OTEC a renewable energy source?
Yes, OTEC is a renewable energy source.
